Parameters
| No. | Model | Value | Unit | Note | |
|---|---|---|---|---|---|
| 1 | Bending diameter | Φ90 | Mm | ||
| 2 | Bending radius | R500,r700 | Mm | 2 sets of round mould | |
| 3 | Bending tube thickness | 4 | Mm | ||
| 4 | Motor power | Model | Y132s-6 | Mm | |
| Power | 3 | Kw | |||
| Rotate speed | 960 | Rpm | |||
| 5 | Size | L | 3000 | Mm | |
| W | 2300 | Mm | |||
| H | 620 | Mm | |||
| 6 | Weight | 2300 | Kg | ||
| 9 | Submerged arc welding machine | 630a | 1set | Shanghai | |
| 10 | Wire feeding | 1set | Shanghai | ||
| 11 | Recycling machine | 1set | Wuxi | ||
| 12 | Line panel | 1pcs | Home made | ||
Description:

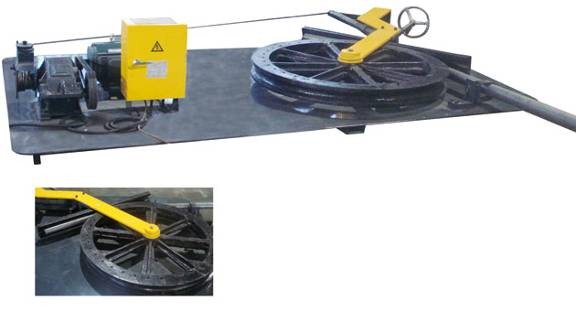

This equipment composed by the board and bending mode, with two sets of molds. Direct mode traction motor reducer, will die on the pressure in the round steel bar along the curved arc surface, simple operation, without heating and filler, economic benefits, compared with the industry's large-scale bending machine is similar effect, is steel manufacturer of equipment necessary.
Spare parts suppliers
| Sn | Name | Spec. | Qty | Supplier |
|---|---|---|---|---|
| 1 | Motor | 3kw | 1set | South anhui or siemens motor |
| 2 | Reducer | Zq250 | 1set | Shanghai |
| 3 | Electric components | 1set | Delixi,chint,schneider,siemens | |
| 4 | Bending die | Radius 500mm | 1pcs | Home made |
| 5 | Bending die | Radius 700mm | 1pcs | Home made |
